BV MACH + AUT-UMS, GENERAL CARGO
SHIP, HEAVY CARGO (12T/M^2)
OCCASIONALLY BULK CARRIER
UNRESTRICTED NAVIGATION
DANGEROUS GOODS MON-SHAFT,
CLEANSHIP INWATERSUREY
Norden Ship Design House | Design,Naval Architecture, Engineering
Other/ Floating Docks

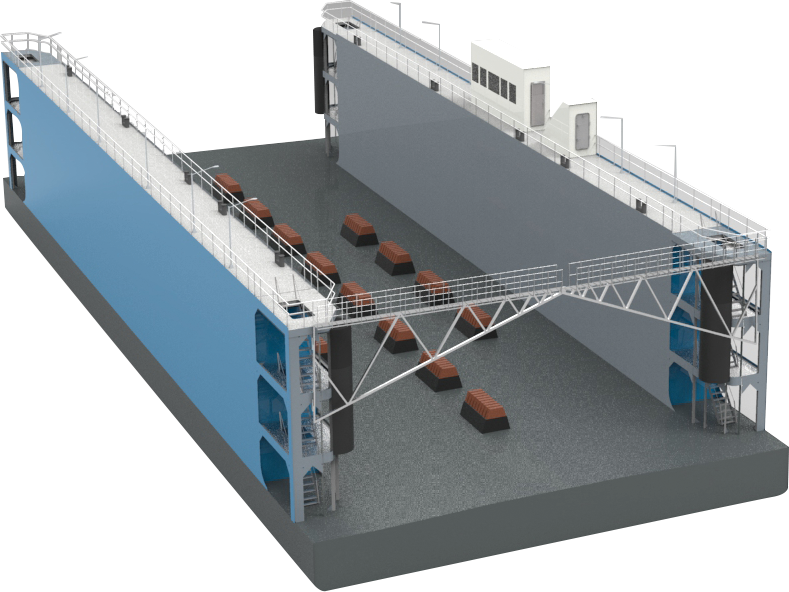

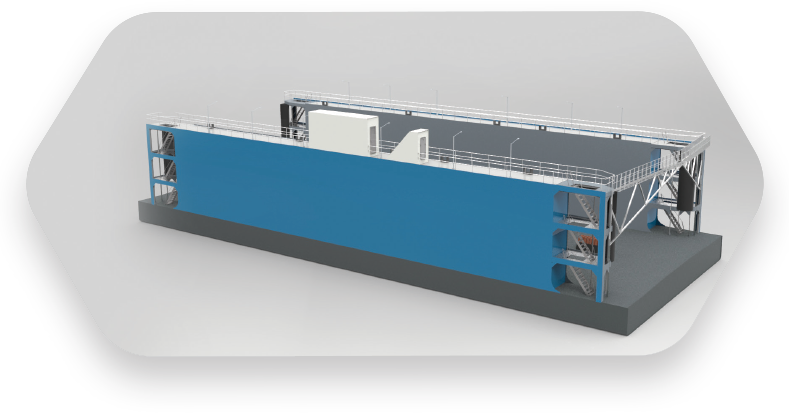

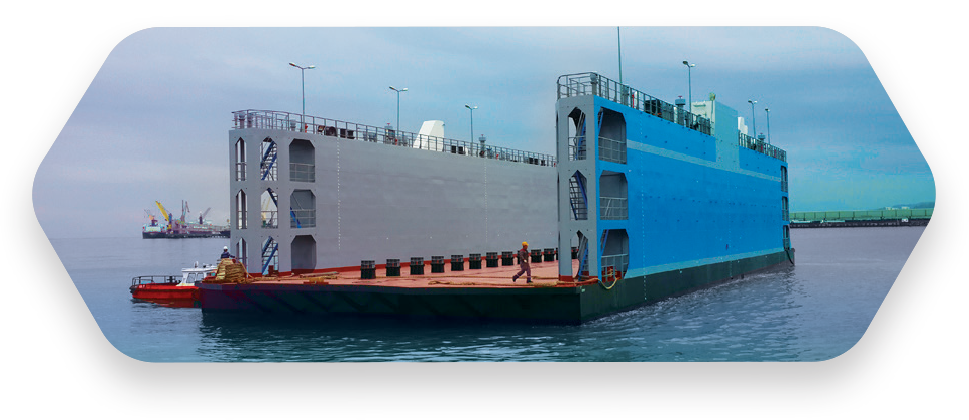

50 M FLOATING DOCK
MAIN PARTICULARS
| Overall Length | 58.00 m |
| length mld. | 52.00 m |
| Breadth O.A. | 21.00 m |
| Depth at side | 10.00 m |
| Design Draught | 9.00 m |
| Draught lightship | 0.570 m |
| Draught loaded | 1.580 m |
| Lifting capacity | 900 t |
| Max. block strength | 20 t |
| Frame spacing | 500mm |
CLASS NOTATIONS
CAPACITIES
| Holds | 13370 m³ |
| Fresh Water | 170 m³ |
| Ballast Water | 3600 m³ |
| MDO / HFO | 120m / m³ |
| Accommodation | 16 Person |
