BV, I, + HULL MACH IMO II OIL\ CHEMICAL TANKER, CSR, CPS(WBT),ESP,IG, AUT- UMS UNRESTRICTED NAVIGATION, CLEANSHIP SUPER 7, GREEN PASSPORT, MON-SHAFT, VCS, IWS, SPM, COW, ICE IC
Norden Ship Design House | Design,Naval Architecture, Engineering
Oil Tanker / Chemical Tanker

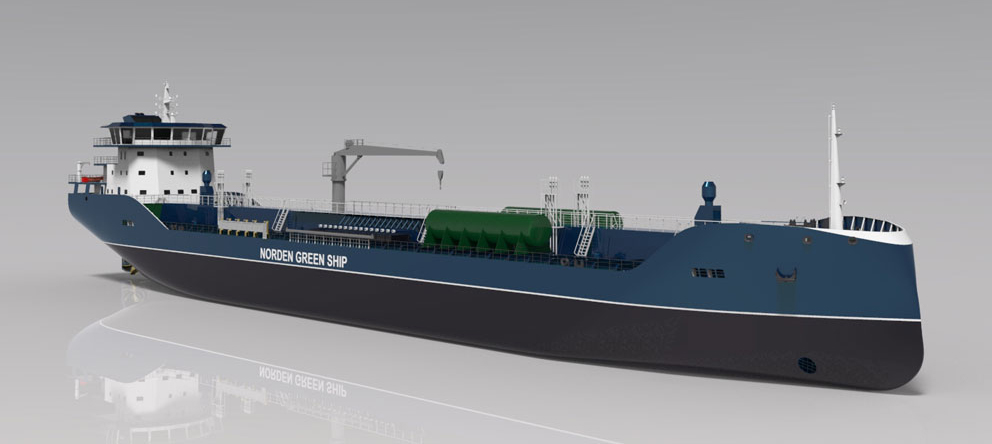

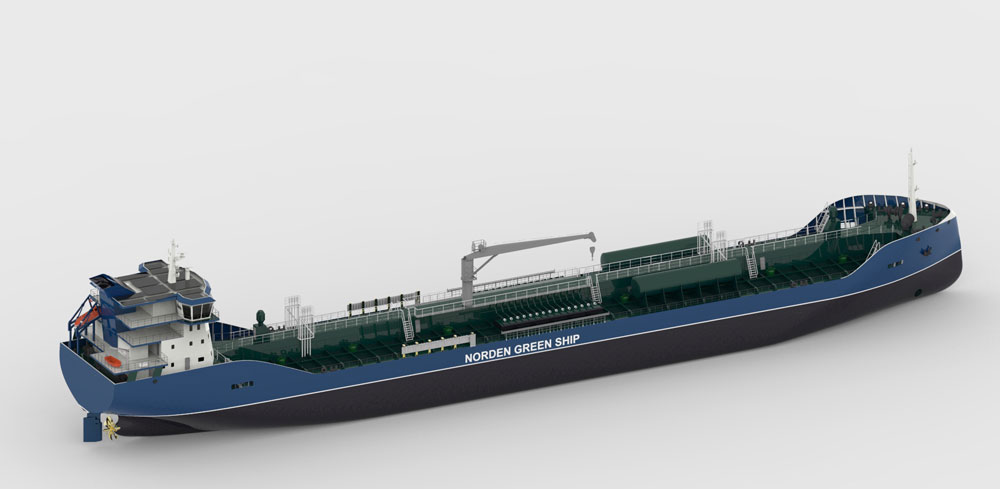

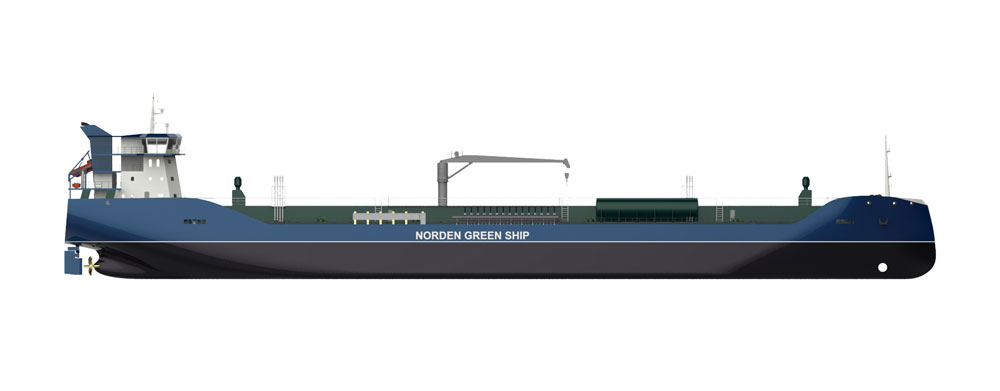

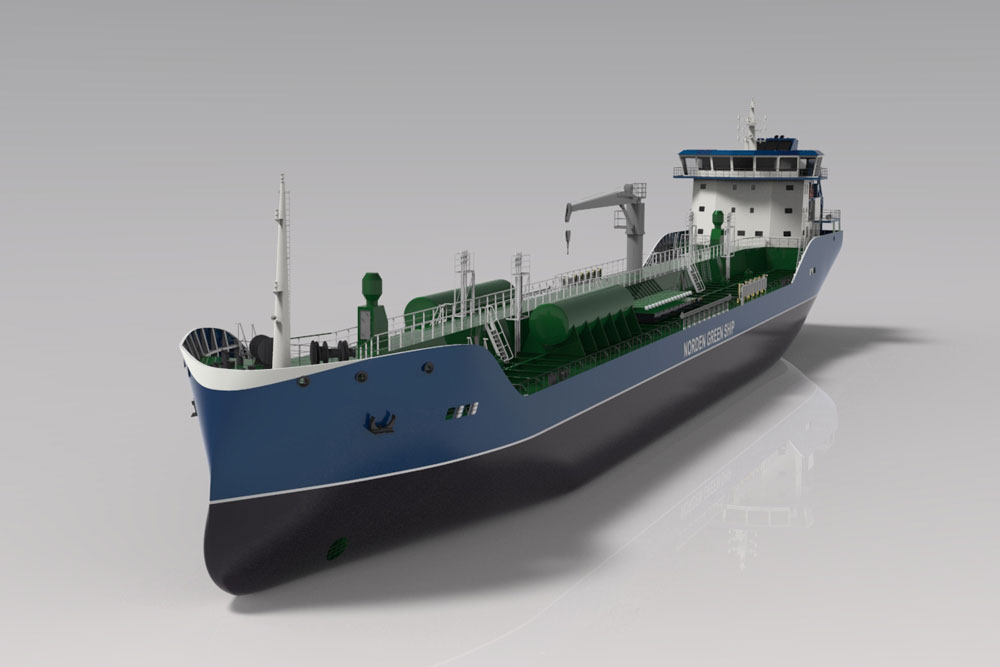

9000 DWT Stainless Chemical Tanker
MAIN PARTICULARS
| Overall Length | 122.80 m |
| LBP | 118.00 m |
| Breadth | 20.0 m |
| Depth | 8.90 m |
| Design Draught | 6.90 m |
| Scantling Draught | 7.10 m |
| Main Engine | 2975 kW |
| Deadweight @ 6.90 m | 9500 t |
| Deadweight @ 7.10 m | 9900 t |
| Eco Speed | 13 Knots |
| Flag | Danish |
CLASS NOTATIONS
CAPACITIES
| Cargo | 13370 m³ |
| Fresh Water | 200 m³ |
| Ballast Water | 4380 m³ |
| MDO | 150 m³ |
| HFO | 400 m³ |
| Accommodation | 22 person |
